VTP (VLAN Trunk Protocol)

it was developed to allow switches to dynamically synchronize the contects of their VLAN databases with each other to ease VLAN configuration in the network



Task 1



1. show vtp status



VTP 는 Domain 이름이 같아야 하는게 핵심 포인트 , Domain 이름이 같으면
VLAN 설정시 한개 스위치에서 설정하면 나머지 스위치들에게도 자동으로 만들어지는 기술



vtp domain name empty is default



2. int r e0/0-3 , e1/0-3 , e2/0-3 , e3/0-3 , e4/0-3 , e5/0-3, e6/0-3



3. shut



4. vtp domain TST







Task 2

스위치 이름을 바꾸는 컨피그





















Task 3












SW3



permanent trunk mode









alway first setup command

"show tru encap dot1q"



if you first setup command " swit mo tru "

You can see the following errors

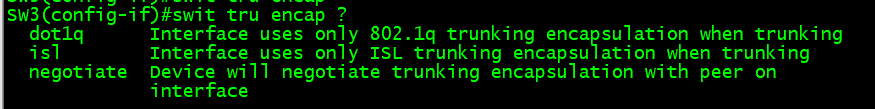

swit tru encap 3 option

dot1q = IEEE 802.1Q standard

ISL = cisco proprietary



.





non-Cisco hardware where such port are called "tagged" port instead of "trunk" port







SW5



Should not config swit trunk encap dot1q



so ,





switch mode

1. access mode - one vlan access link

2. trunk mode - multi vlan access-link

3. dynamic auto mode - If the other port is set to Trunk or Dynamic Desirable, it forms a Trunk link.










4. dynamic desirable mode - all nego












n-802.1Q

n = negotiated





5. Nonegotiate mode - disable DTP
